Description

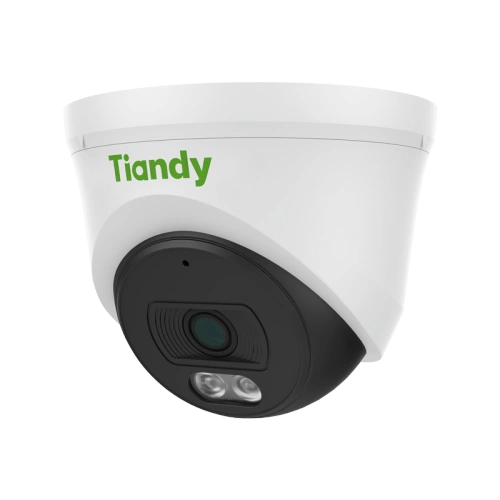

TC-C34XN 2.8mm Turret Camera
The TC-C34XN 2.8mm Turret Camera is a professional 4MP IP surveillance camera engineered to provide outstanding image quality, dependable performance, and advanced security features for homes, offices, warehouses, schools, retail stores, and commercial properties. Equipped with a 4MP CMOS sensor, the camera captures crystal-clear video at up to 2560×1440 resolution, allowing users to identify faces, vehicles, and important details with exceptional clarity.
| Model | TC-C34XN 2.8mm Turret Camera |
|---|---|
| Image Sensor | 1/3″ CMOS |
| Maximum Resolution | 4MP (2560 × 1440 @20fps) |
| Lens | 2.8mm Fixed Lens |
| Aperture | F1.6 |
| Field of View | 92.8° Horizontal, 52.2° Vertical, 106.5° Diagonal |
| Night Vision | Smart IR up to 30m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Audio | Built-in Microphone |
| Video Bitrate | 32 Kbps – 6 Mbps |
| WDR | DWDR |
| Image Enhancement | 3D DNR, BLC, HLC, Defog |
| Motion Detection | Supported |
| Protocols | HTTP, TCP/IP, UDP, DHCP, DNS, NTP, RTSP, TLS v1.2 |
| Network Interface | 1 × RJ45 (10/100 Mbps) |
| Power Supply | PoE IEEE 802.3af (Max. 6W) |
| Weather Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 117 × 117 × 96 mm |
| Weight | 0.34 kg |
Its 2.8mm fixed wide-angle lens delivers a broad 92.8° horizontal field of view, making it ideal for monitoring entrances, hallways, parking areas, and open spaces while reducing blind spots. The camera uses Smart IR technology with an infrared range of up to 30 meters, automatically adjusting infrared intensity to prevent overexposure and maintain balanced nighttime images.
The TC-C34XN 2.8mm Turret Camera supports advanced S+265, H.265, and H.264 compression, minimizing bandwidth and storage usage while maintaining excellent image quality. Built-in 3D DNR, BLC, HLC, DWDR, and intelligent white balance ensure sharp and detailed footage in challenging lighting conditions.
Installation is simple thanks to PoE (Power over Ethernet) support, allowing both power and data to travel through a single Ethernet cable. The integrated microphone enables synchronized audio recording for enhanced security monitoring. Its durable IP67-rated housing protects against rain, dust, and harsh weather, making it suitable for year-round outdoor operation.
Compatible with ONVIF Profile S/T, Easy7 VMS, EasyLive Plus, Milestone, and RTSP, this camera integrates seamlessly into most professional surveillance systems.
Whether you need reliable protection for your business or home, the TC-C34XN 2.8mm Turret Camera delivers dependable 24/7 monitoring with high-definition imaging, efficient storage, and long-lasting performance.
Learn more about IP camera interoperability on the ONVIF Official Website and explore additional surveillance solutions from the Tiandy Official Website. You can also browse our IP Camera Collection, explore our Turret Cameras, or view all CCTV Cameras for more professional security solutions.
