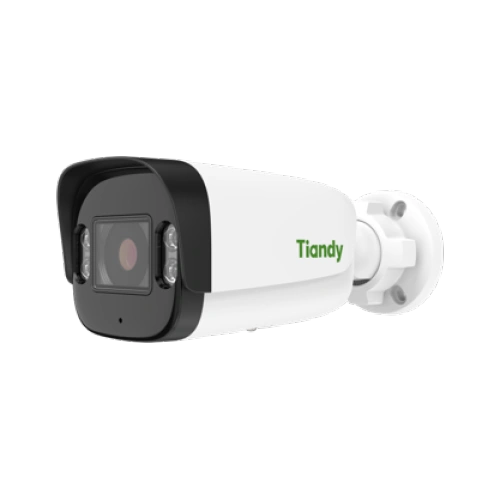

TC-C34UV 3FRB-4 4MP Polar Day Bullet Camera
The TC-C34UV 3FRB-4 is a next-generation 4MP Polar Day Bullet Camera engineered for professional surveillance where exceptional image quality, intelligent detection, and reliable performance are essential. Built with a powerful 1/1.8-inch CMOS image sensor and an ultra-large F1.0 aperture, this camera captures vivid full-color images even in extremely low-light environments. Unlike conventional infrared cameras that switch to black-and-white during nighttime, the TC-C34UV 3FRB-4 delivers true color surveillance with outstanding clarity, allowing security personnel to recognize faces, vehicles, clothing colors, and important details around the clock.
| General | Specification |
|---|---|
| Model | TC-C34UV 3FRB-4 |
| Camera Type | 4MP Polar Day Bullet Camera |
| Housing | Metal + Plastic |
| Camera | |
| Image Sensor | 1/1.8″ CMOS |
| Maximum Resolution | 2688 × 1520 @ 25fps |
| Minimum Illumination | 0.0001 Lux @ F1.0 (Color) |
| Shutter Speed | 1s ~ 1/100000s |
| Day/Night | Fixed IR-Cut |
| Wide Dynamic Range | 120dB WDR |
| Signal to Noise Ratio | >46dB |
| Lens | |
| Lens Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Lens Mount | M16 |
| Aperture | F1.0 |
| Viewing Angle | 88.8° Horizontal, 49.0° Vertical, 103.1° Diagonal |
| Night Vision | |
| White LEDs | 4 LEDs |
| White Light Distance | Up to 30m |
| Image Features | |
| BLC | Yes |
| HLC | Yes |
| 3D DNR | Yes |
| ROI | 8 Regions |
| Defog | Yes |
| Privacy Mask | 4 Areas |
| Smart Features | |
| AI Detection | Human & Vehicle Classification |
| Video Analytics | Tripwire, Perimeter Protection |
| Behavior Analysis | Supported |
| Audio | |
| Built-in Microphone | Yes |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Storage | |
| Memory Card | microSD up to 512GB |
| ANR | Supported |
| Video Compression | |
| Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Network | |
| Protocols | RTSP, HTTP, HTTPS, TCP, UDP, DHCP, DNS, IPv4, IPv6, FTP, SSH, QoS, SMTP, SNMP, TLS |
| Compatibility | ONVIF Profile S/T/G/M, SDK, CGI, Milestone |
| Mobile App | EasyLive Plus |
| Desktop Client | Easy7 VMS |
| Power | |
| Power Supply | DC12V ±25% / IEEE802.3af PoE |
| Maximum Power Consumption | 9.6W |
| Environmental | |
| Operating Temperature | -35°C to 65°C |
| Protection Rating | IP67 |
| Surge Protection | 4000V |
| ESD Protection | 6000V |
| Dimensions | |
| Size | 204 × 84 × 76 mm |
| Weight | 0.60 kg |
Designed for both residential and commercial applications, the TC-C34UV 3FRB-4 provides an impressive 4MP (2688 × 1520) resolution at up to 25fps, producing highly detailed recordings suitable for evidence collection and real-time monitoring. Whether installed at office entrances, parking lots, warehouses, factories, schools, hospitals, retail stores, shopping malls, hotels, or residential properties, this camera delivers dependable surveillance under challenging lighting and weather conditions.
One of the biggest advantages of the TC-C34UV 3FRB-4 is its Polar Day technology, which combines an ultra-sensitive image sensor with a bright F1.0 lens and integrated white LEDs. This combination allows the camera to maintain full-color imaging throughout the night without sacrificing detail. The powerful 30-meter white light illumination ensures that monitored areas remain clearly visible while also acting as a deterrent against unwanted visitors.
For smarter surveillance, the camera features AI-powered human and vehicle classification, reducing false alarms caused by animals, moving leaves, rain, or shadows. Intelligent analytics such as Tripwire Detection, Perimeter Protection, and Behavior Analysis enable security teams to receive alerts only when genuine security events occur. This significantly improves monitoring efficiency while minimizing unnecessary notifications.
The integrated built-in microphone records synchronized audio alongside video footage, providing additional evidence during investigations. The camera also supports microSD cards up to 512GB, allowing local storage without requiring a dedicated recorder. When connected to an NVR, it also supports advanced recording management through ANR (Automatic Network Replenishment), ensuring recordings remain complete even during temporary network interruptions.
Image quality is enhanced through multiple advanced technologies including 120dB Wide Dynamic Range (WDR), 3D Digital Noise Reduction, Backlight Compensation (BLC), Highlight Compensation (HLC), Defog, Region of Interest (ROI), and intelligent white balance controls. These technologies ensure clear images in difficult environments with strong backlighting, fog, reflections, or varying lighting conditions.
Compression is handled by S+265, H.265, and H.264 codecs, dramatically reducing bandwidth usage and storage requirements without compromising image quality. This allows users to store more footage while reducing overall storage costs.
Networking capabilities include support for ONVIF Profile S, T, G, and M, making integration with third-party NVRs and video management systems simple. Compatibility with Easy7 VMS, EasyLive Plus, Milestone, SDK, and CGI provides flexible deployment options for installers and system integrators.
Installation is straightforward thanks to support for both 12V DC and IEEE 802.3af PoE, allowing both power and data transmission over a single Ethernet cable. The durable IP67-rated metal and plastic housing protects the camera against rain, dust, and harsh outdoor environments, making it suitable for year-round operation.
With advanced AI analytics, full-color night vision, built-in audio recording, high-resolution imaging, and professional-grade durability, the TC-C34UV 3FRB-4 represents an excellent solution for businesses and homeowners seeking dependable, intelligent IP surveillance.
